Power measurement instrument sensor·Explanation

As the power measurement instrument which increasingly expanding such as saving energy, solar, cogeneration, preventive, predictive maintenance, etc, the sensor group which integrates our U_RD's technology is line-up.

The group of power measurement instrument sensor is line-up.

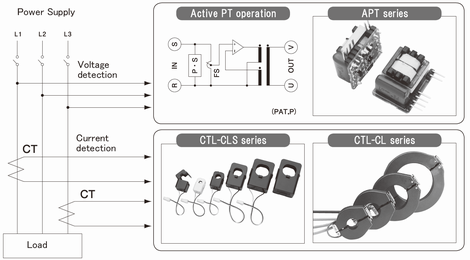

It is the active PT which combines the ultra small transformer and the electrical circuit.
Excellent ratio error characteristic ( ± 1%) and phase angle characteristic ( ± 30min)

● SIP shape for equipment built-in APT-2S:200V/1V(100V/0.5V)

[Outsourcing can be asked for the special order beside the products in the catalogue]
