The basic concept for U-RD AC current sensor
The original current sensor of U-RD (CTL series) are the CT (Current Transformer) which pursue the minimizing and high reliability for the measurement and control. The big difference from the conventional CT for measurement is the output of mA with high current ratio of 400:1~2000:1. It can construct the high safe system, because it can get the current information which can interface directly to the electrical circuit with only insertion of the measured wire into the aperture of the center of the sensor.
The principle (Current Transformer type)
It is the current transformer which becomes the current ratio of n:1 between the secondary coil turned n times around the ring core, and penetrated wire. The current output can be converted to the voltage signal with flowing the current into the load resistor.
Structure (CTL-6-S-H)
It is robust structure with potting by epoxy, to the CT (Current Transformer) including the ring core wound by toroidal coil, in the plastic case.
The secondary winding is connected to the terminals which are fixed to the case, and they guarantee the good isolation toward the penetrated wire.
It can select the characteristic and structure which are matched to the application
General Purpose CTL series | Sensor for general industrial machine |
---|
Precision Purpose CTL-Z series | Precision sensor corresponding to wide current range |
---|
Split Core Clamp Type Sensor | For installing to conducted wire and existing wire |
---|
High Frequency CT | Measurement of wide band and high frequency current |
---|
Special Sensor | Air core coil/High current·magnetic field sensor, and so on |
---|
LED indicator(C.T.LIGHT) | For indicator of current detection with LED built-in CT |
[The development of customized products without the catalogue products can be asked.]

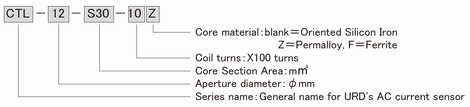

The example of model description and function explanation
AC current sensor ·Main products list
CTL - General Purpose series | Features | Aperture | Secondary coil turns | Primary current | Maximum primary |
---|
CTL-6-L·CTL-6-V | Ultra small size for PCB mounting horizontally or vertically | φ6 | 800 | 0.1-40A | 60A |
---|
CTL-6-P-H·CTL-6-S-H | Small size for PCB or Panel mounting | φ5.8 | 800 | 0.1-80A | 80A |
---|
CTL-6-P-8·CTL-6-S-8 | Small size for PCB or Panel mounting | φ5.8 | 800 | 0.1-60A | 80A |
---|
CTL-9L-1 | Small size and wire type for output | φ9 | 3000 | 0.1-100A | 200A |
---|
CTL-12L-8 | Small size and wire type for output | φ12 | 800 | 0.1-120A | 180A |
---|
CTL-12L-10 | Small size and wire type for output | φ12 | 1000 | 0.1-150A | 180A |
---|
CTL-12L-30 | Small size and wire type for output | φ12 | 3000 | 0.1-180A | 200A |
---|
CTL-12-S36-10 | Medium size and pin type for output | φ12 | 1000 | 0.1-280A | 240A |
---|
CTL-12-S56-10 | Medium size and pin type for output | φ12 | 1000 | 0.1-300A | 220A |
---|
CTL-12-S56-20 | Medium size and pin type for output | φ12 | 2000 | 0.1-320A | 260A |
---|
CTL-12-S36-10L1 | Medium size and wire type for output | φ12 | 1000 | 0.1-280A | 240A |
---|
CTL-12-S36-10L | Medium size and wire type for output | φ12 | 1000 | 0.1-300A | 220A |
---|
CTL-18L-1 | Small size and wire type for output | φ18 | 3000 | 0.1-180A | 180A |
---|
CTL-18S-1 | Small size and wire type for output | φ18 | 3000 | 0.1-180A | 180A |
---|
CTL-24-TE | Medium size and wire type for output | φ24 | 1000 | 0.1-320A | 320A |
---|
CTL-24-TE#B | Medium size and wire type for output | φ24 | 1000 | 0.1-500A | 400A |
---|
CTL-36-S56-10B1 | Large size and screw terminal for output | φ36 | 1000 | 0.1-800A | 600A |
---|
CTL-36-S56-20 | Large size and screw terminal for output | φ36 | 2000 | 0.1-800A | 800A |
CTL - Z series | Features | Aperture | Secondary coil turns | Primary current | Maximum primary curren |
---|
CTL-5-Z | Ultra small size for PCB mounting vertically | φ6 | 800 | 1mA-20A | 80A |
---|
CTL-6-L-Z·CTL-6-V-Z | Ultra small size for PCB mounting horizontally or vertically | φ6 | 800 | 1mA-15A | 60A |
---|
CTL-6-P-Z·CTL-6-S-Z | Small size for PCB or Panel mounting | φ6 | 800 | 1mA-20A | 80A |
---|
CTL-6-P-X·CTL-6-S-X | Small size for PCB or Panel mounting | φ6 | 800 | 1mA-35A | 80A |
---|
CTL-12-S30-10Z | Medium size and pin type for output | φ12 | 1000 | 1mA-100A | 250A |
---|
CTL-12-S30-20Z | Medium size and pin type for output | φ12 | 2000 | 1mA-200A | 320A |
---|
CTL-12-S60-7Z | Medium size and pin type for output | φ12 | 720 | 1mA-100A | 230A |
---|
CTL-24-S28-10Z | Medium size and wire type for output | φ24 | 1000 | 1mA-80A | 330A |
---|
CTL-24-S28-20Z | Medium size and wire type for output | φ24 | 2000 | 1mA-200A | 360A |
---|
CTL-36-S56-10Z | Large size and screw terminal for output | φ36 | 1000 | 1mA-180A | 300A |
---|
CTL-36-S56-20Z | Large size and screw terminal for output | φ36 | 2000 | 1mA-400A | 500A |
---|
CTU-8-S50-60 | High current ratio and large output voltage | 8X17.5 | 6000 | 10mA-80A | 240A |
---|
CTL-12L-10X | High current ratio and large output voltage | φ12 | 1000 | 1mA-70A | 120A |
Split core·Clamp type | Features | Aperture | Secondary coil turns | Primary current | Open circuit protection |
---|
CTL - 6 - S32 -8F- CL | Ultra small size for current detection | φ6 | 800 | 10mA-15A | - |
---|
CTL -7- CLS | Minimum size for data collection | φ7 | 3000 | 10mA-40A | 7.5V |
---|
CTL -8- CLS | Minimum size for data collection | φ8 | 3000 | 10mA-100A | 7.5V |
---|
CTU -8- CLS | Small size for data collection | φ8 | 3000 | 10mA-75A | 6.5V |
---|
CTL - 10 - CLS | Ultra small size for data collection | φ10 | 3000 | 10mA80A | 7.5V |
---|
CTL - 16 - CLS | Small size for data colection | φ16 | 3000 | 10mA-120A | 7.5V |
---|
CTU - 18 - CLS | Small size for data colection | φ18 | 3000 | 10mA-150A | 6.5V |
---|
CTU -22 - CLF | Small size and wide range for earth wire | φ22 | 2000 | 1mA-120A | 7.5V |
---|
CTL - 24 - CLSF | Medium size for data collection | φ24 | 3000 | 10mA-200A | 7.5V |
---|
CTL - 24 - CLS | Medium size for power equipment | φ24 | 2000 | 0.1-300A | 3.0V |
---|
CTL - 36 - CLS | Large size for power equipment | φ36 | 2000 | 0.1-500A | 3.0V |
---|
CTT - 10 - CLS | Ultra small size for data collection | φ10 | 3000 | 10mA-80A | 7.5V |
---|
CTT - 16 - CLS | Small size for data collection | φ16 | 3000 | 10mA-120A | 7.5V |
---|
CTT - 24 - CLS | Medium size for power equipment | φ24 | 2000 | 0.1-300A | 3.0V |
---|
CTT - 36 - CLS | Large size for power equipment | φ36 | 2000 | 0.1-600A | 3.0V |
---|
CTL -8- 3FC | Small size for data collection | φ8 | 3000 | 10mA-100A | 7.5V |
---|
CTL - 10 - 3FC | Ultra small size for data collection | φ10 | 3000 | 10mA-80A | 7.5V |
---|
CTL - 16 - 3FC | Small size for data collection | φ16 | 3000 | 10mA-120A | 7.5V |
---|
CTL - 24 - 3FC | Medium size for power equipment | φ24 | 3000 | 10mA-240A | 7.5V |
---|
CTL - 36 - 6SC | Large size for power equipment | φ36 | 6000 | 0.1-450A | 7.5V |
---|
CTL - 36 - 9SC | Large size for power equipment | φ36 | 9000 | 0.1-600A | 7.5V |
---|
CTL - CL (basic type) | 1A, 5A output CT | φ24-φ36 | 100-200 | 100-500A | 1.4-6.5V |
---|
CTL - CL (application type) Easy order | Easy order system | φ24-φ100 | 100-5000 | 10-2000A | 1.4-6.5V |
High frequency CT | Features | Aperture | Frequency | Maximum current | Output sensitivity |
---|
CTL-6-S-S9-2.5H | Small size for high frequency current | φ6 | 1k-1M | 60Arms | 250:1 |
---|
CTL-12-S30-2.5Z | Medium size for high frequency current | φ12 | 50-500k | 200Arms | 250:1 |
---|
CTL-24-S28-2.5Z | Medium size for high frequency current | φ24 | 50-500k | 200Arms | 250:1 |
---|
CTL-28-S90-05Z-1R1 | For general use of high frequency | φ28 | 2k-100M | 10Arms | 1V/1A |
---|
CTL-35-S162-5F-1R10 | High frequency low range | φ35 | 10-15M | 50Arms | 0.1V/A |
---|
CTL-58-S100-2F-1KR5 | For pulse measurement | φ58 | 40-1M | 1000Arms | 0.5V or 5A |
---|
CTL-28-S90-05Z-1R1-CL1 | Medium size clamp type | φ28 | 2k-30M | 10Arms | 1V/A |
---|
CTL-35-S162-5F-1R10-CL1 | Large size clamp type | φ35 | 20-15M | 50Arms | 0.1V/A |
---|
CTL-75-S100-05Z-1R1-CL | Large size clamp type | φ75 | 2k-20M | 10Arms | 1V/A |
